Vetus Stainless Steel Bollard Type ACHIL
Description

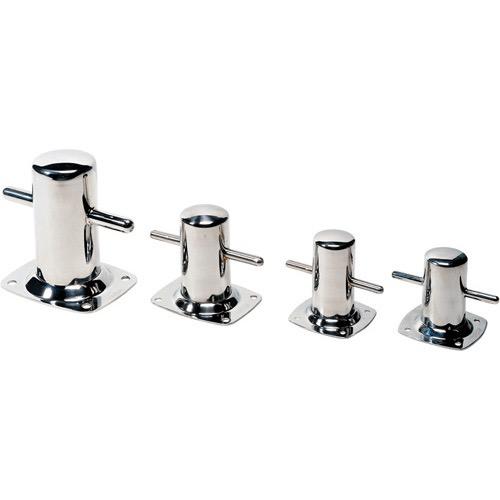

High-gloss polished stainless steel (AISI 316) bollards. Available in 6 sizes with safe working loads from 620kgf to 2620kgf. ACHILZ variants are designed for direct welding to the deck; dimensions are identical to the standard ACHIL range.
Specifications

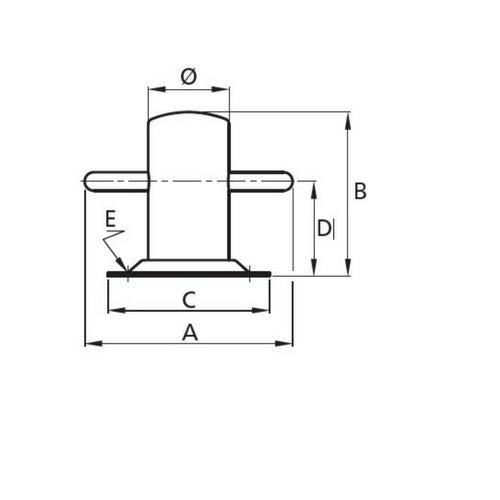

All dimensions in mm. * SWL = Safe Working Load. ** C = base plate dimensions (standard mount only).
| Type | SWL* | A (mm) | B (mm) | Ø (mm) | C** (mm) | D (mm) | E |
|---|---|---|---|---|---|---|---|
| ACHIL080 | 620kgf | 120 | 90 | 40 | 80×65 | 52 | 4×Ø65 |
| ACHIL090 | 620kgf | 130 | 95 | 50 | 92×92 | 52 | 4×Ø65 |
| ACHIL110 | 1150kgf | 160 | 120 | 60 | 122×97 | 70 | 4×Ø85 |
| ACHIL130 | 1150kgf | 180 | 142 | 70 | 140×118 | 82 | 4×Ø85 |
| ACHIL150 | 1800kgf | 200 | 172 | 80 | 153×122 | 100 | 4×Ø105 |
| ACHIL160 | 2620kgf | 255 | 195 | 90 | 165×135 | 120 | 4×Ø105 |
| ACHIL080Z | 620kgf | 120 | 90 | 40 | Direct weld | 52 | — |
| ACHIL090Z | 620kgf | 130 | 95 | 50 | Direct weld | 52 | — |
| ACHIL110Z | 1150kgf | 160 | 120 | 60 | Direct weld | 70 | — |
| ACHIL130Z | 1150kgf | 180 | 142 | 70 | Direct weld | 82 | — |
| ACHIL150Z | 1800kgf | 200 | 172 | 80 | Direct weld | 100 | — |
| ACHIL160Z | 2620kgf | 255 | 195 | 90 | Direct weld | 120 | — |
