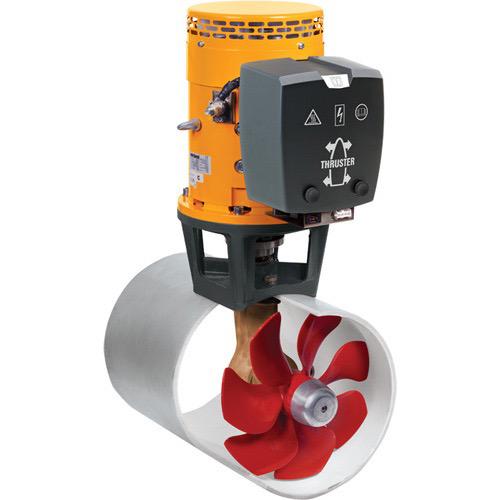

Vetus Bow Thruster - 220 kgf - 24V - Tunnel Dia: 300mm (BOW22024D)

SKU: BOW22024D

$9,799.00 $10,778.08

Description

The Vetus BOW series is the original recreational boat bow thruster — developed and refined over 30 years across vessels from 15 to 90 feet. The BOW22024D delivers 220 kgf of thrust at 24V DC, making it a powerful and reliable manoeuvring solution for larger yachts and motorboats. Simple on/off port-starboard control, low noise from the unique propeller blade design and spiral gears, and a synthetic propeller that eliminates corrosion and reduces weight.

Easy to install with clear instructions, and control panels are interchangeable with older Vetus panels for straightforward upgrades.

Key Features

220 kgf thrust output at 24V
Minimal noise — unique propeller blade design and spiral gears
Optimum flow via streamlined tail piece
Synthetic propeller — corrosion-free, lightweight
On/off port-starboard control
Control panels interchangeable with older Vetus models
Easy installation with clear instructions

Specifications

Parameter	BOW22024D
Thrust	2200 N (220 kgf) @ 24V
Power	11 kW (15 hp)
Motor	Reversible D.C.
Voltage	24V D.C.
Current consumption	760A
Tunnel diameter (internal)	300mm
Weight (excl. tunnel)	68 kg
Operating time (continuous)	2.5 min
Max. operating time per hour	2.5 min
Main fuse	500A
Battery requirement (min/max Ah)	2x200 / 4x165 Ah
Battery cables (neg.)	0–12m / 120mm²
Battery main switch	600A / 24V

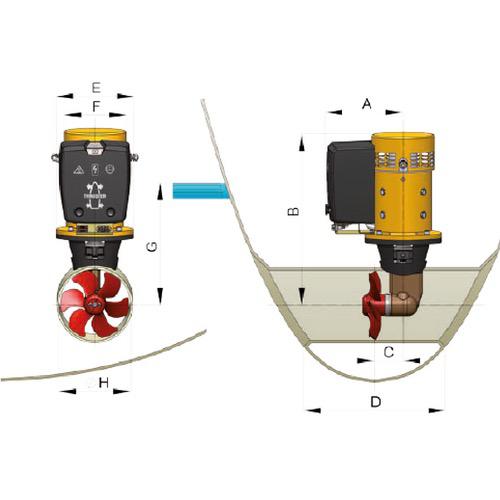

Dimensions (mm)

A	B	C	D (min/max)	E	F Ø	G min.	H Ø
247	627	136	600 / 1200	258	212	300	300
