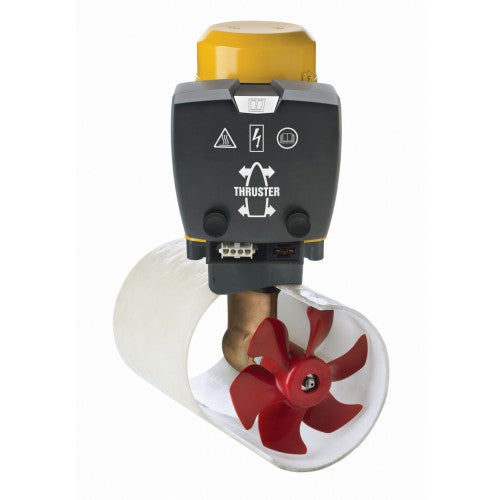

VETUS BOW THRUSTER 45KGF BOW4512D
or 4 interest free payments of $674.75
269900
0
Regular price
$2,699.00
Bosuns Locker Gold Coast has access to every Vetus Bow Thrusters available in their catalouge. Call us if you would like to discuss other options, as well as a 5% discount on any VETUS thruster product. Advantages of VETUS bow thrusters...
Bosuns Locker Gold Coast has access to every Vetus Bow Thrusters available in their catalouge. Call us if you would like to discuss other options, as well as a 5% discount on any VETUS thruster product.
Advantages of VETUS bow thrusters
- A single propeller creates less flow disturbance in the tunnel
- The VETUS unique propeller blade design minimises cavitation noise
- Spiral gears minimise transmission noise
- The use of a flexible coupling between tail piece and motor eliminates vibration
- All VETUS systems use a streamlined tail piece for optimum flow
- A strong synthetic propeller eliminates corrosion and reduces weight
- Systems are easy to install, supplied with clear installation and operation instructions
- VETUS systems use a new line of high quality aluminium control panels which are interchangeable with older panels
- All VETUS manoeuvring systems meet the EMC requirements
| Voltage (V) | 12 V DC |
|---|---|
| Ignition protection | No |
| Thrust (N / kgf) | 500/55 |
| Power (kW) | 1,5 |
| Motor, reversible D.C. | Yes |
| Internal tunnel diameter (mm) | 125 |
| Weight (kg) | 20 |
| Current consumption (A) | 300 |
| Continuous operating time (min) | 4 |
| Max. operating time (minutes) | 4 |
| Main fuse "slow blow" (A) | 250 |
| Batteries 12 V, min./max. Ah | 1x105 1x200 |
| Battery cables, length pos./neg. cables (m/mm²) | 0-12/70 |
| Battery main switch: model BATSW / type BPMAIN | 250/12 |

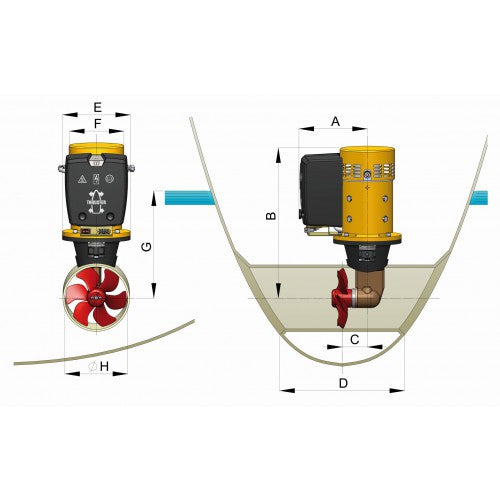

| Size A in mm, see drawing | 143 |
| Size B in mm, see drawing | 377 |
| Size C in mm, see drawing | 79 |
| Size D min./max. in mm, see drawing | 300/600 |
| Size E in mm, see drawing | 160 |
| Size F, diameter in mm, see drawing | 130 |
| Size G min. in mm, see drawing | 150 |
| Size H, diameter in mm, see drawing | 150 |
