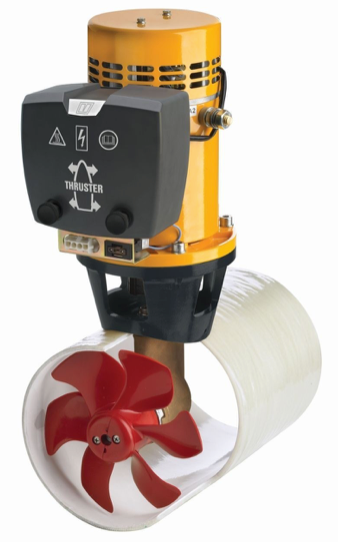

VETUS BOW THRUSTER 95 Kgf
Description
The VETUS BOW9524D is an extended runtime electric bow thruster for boats from 36 to 75 feet. An extension of the proven DC thruster platform, it is designed for integrated boat control systems, joystick docking, and other demanding applications requiring long runtimes at high power output. It can operate continuously for up to 10 minutes without overheating.
Key Features
- Extended runtime — 10 minutes continuous operation
- On/off, port/starboard control
- Simple, intuitive operation
- Easy installation and retrofit
- 5 models available: 95–220 kgf
- 12 V and 24 V DC options
- Motor: reversible DC, series wound with carbon brushes
Specifications — BOW9524D
| Parameter | Value |
|---|---|
| Thrust | 1050 N (105 kgf) |
| Power | 5.7 kW (8 hp) |
| Voltage | 24 V DC |
| Current consumption | 350 A |
| Tunnel diameter (internal) | 185 mm |
| Weight excl. tunnel (incl. packaging) | 34 kg |
| Weight excl. tunnel (excl. packaging) | 30.7 kg |
| Operating time (continuous) | 10 min |
| Operating time (max per hour) | 10 min |
| Main fuse (slow blow) | 355 A |
| Min. battery @ 24 V | 248 Ah |
| Max. battery @ 24 V | 496 Ah |
| Battery cables (total pos + neg length) | 0–21 m / 70 mm² * |
| Battery main switch (BATSW / BPMAIN) | 600 A / 24 |
* Based on VETUS battery cables

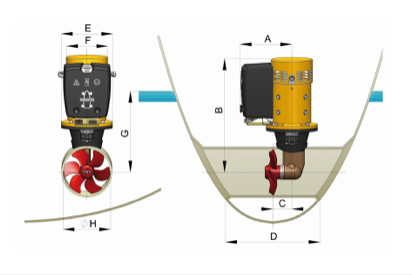

Dimensions (mm)
| Dimension | mm |
|---|---|
| A | 222 |
| B | 492 |
| C | 77 |
| D min / max | 370 / 740 |
| E | 240 |
| F | 185 |
| G min | 185 |
| H | 185 |
