VETUS DECK HATCH MAGNUS , CUT OUT SIZE 421 X 421 MM

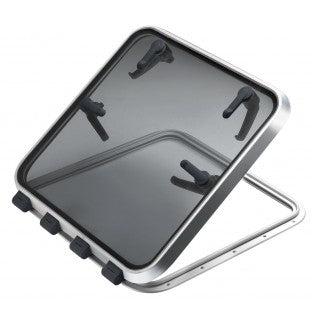

MANGNUS hatches have a satin sheen anodized frame profile with a 10 mm thick ‘dark smoke’ coloured acrylic and are designed for ocean use, design category A, Area I. These hatches can be opened from the inside or outside through 180° with almost no obstructions in the opening. They have a ventilation position and can be locked completely watertight. The cut-out sizes of this type match the market-based dimensions. Application on habitable multihulls as a means of escape in the inverted position, is subject to European legislation. Please contact our glazing team for further information. The first image is one version of our MANGUS hatches. The hatches differ in shape and in the number of hinges, adjusters and handles.
Satin sheen anodized aluminium frame. “Dark smoke” coloured acrylic. Lid can be held open at any angle up to 90°.
EXTERNAL DIMENSIONS A X B (MM), 473 x 473
CUT-OUT DIMENSIONS C X D (MM), 421 x 421
NUMBER OF HINGES, 3
NUMBER OF ADJUSTERS, dna
NUMBER OF HANDLES, 2
TYPE MOSQUITO SCREEN, No
