Display for Level Indication via Bus-System Max 4 Tanks

The VETUS ultrasonic level sensor, type SENSORB is contactless and will measure the fluid level in any shape of tank (metal tanks are not recommended), regardless of its dimensions, but with a maximum depth of 120 cm. It is suitable for use with: petrol, diesel fuel, drinking water, black and grey wastewater. After installing the SENSORB it can be calibrated very easily using the SENSORD graphic display.

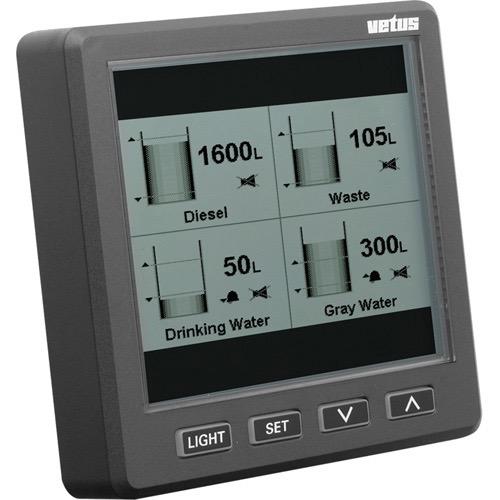

The graphic display instrument model SENSORD can be used to show the contents of up to 4 different tanks on one screen. A maximum of 8 tanks can be monitored with this system.

Specifications

• Power supply: 8 - 32 Volt D.C.
• Current consumption Instrument: 125 mA at 12 Volt 63 mA at 24 Volt Including background lighting
• Current consumption sensor: 35mA
• Communication protocol sensor: RS-485
• Number of sensors: max. 8
• Number of display instruments: max. 2
• Alarm outputs: 4
• Max. current on alarm output: 200 mA
• Languages: Dutch, English, German, French, Spanish and Italian
• Operating temperature: 0 to +50 °C
• Protection class: IP66

  EMC-directive 89/336/EEC, 92/31/EEC and 93/68/EEC

  The tank management system consists of a display instrument (SENSORD) and an ultrasonic level sensor (SENSORB) for each tank. The required number of sensors must be purchased separately.

  Scope of supply SENSORD
• One display instrument
• One 8-pin female socket
• One UTP network cable (5 metres)
• One UTP splitter
• Gasket
• Mounting screws
• Drill template
