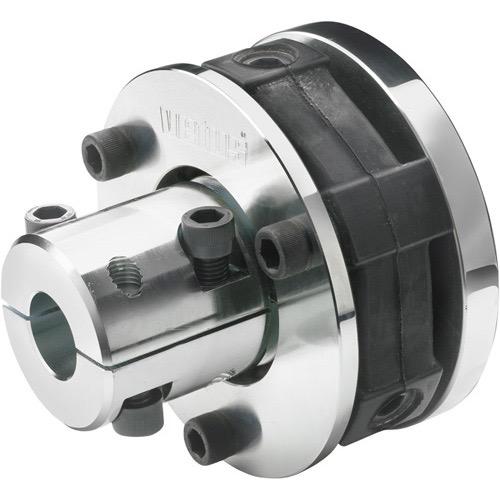

Vetus Flexible Coupling Type Bullflex 12

SKU: BULFL1245

$1,599.00 $1,739.24

Color

NA

Size

(d)Shaft Dia: 45mm (d)Shaft Dia: 40mm (d)Shaft Dia: 35mm

Description

Ensuring Optimum Damping of Vibrations

The Vetus Bullflex Type 12 flexible coupling is designed to deliver superior vibration damping for marine propulsion systems. Its highly flexible rubber element smooths out torsional vibrations, ensuring low-noise, vibration-free power transmission between the engine and propeller shaft — without backlash. The coupling also provides excellent propeller shaft alignment.

Features

Very high flexibility
Secured against shearing off (axially and radially) for safe transmission under all circumstances
Misalignment of up to 2° permissible
Excellent centring of the shaft, allowing high shaft revolutions
Shaft remains centred even in reverse gear
Centring ring can be removed where two or more bearings are applied
Built-in thrust damper reducing axial vibrations
Non-tapered clamping hub for perfect centring and easy dismantling

Specifications

Models 8, 12 and 16 feature a 4" and 5" gearbox connection
Vetus can supply the required fastenings for installation onto the gearbox
Not suitable for V-Drives

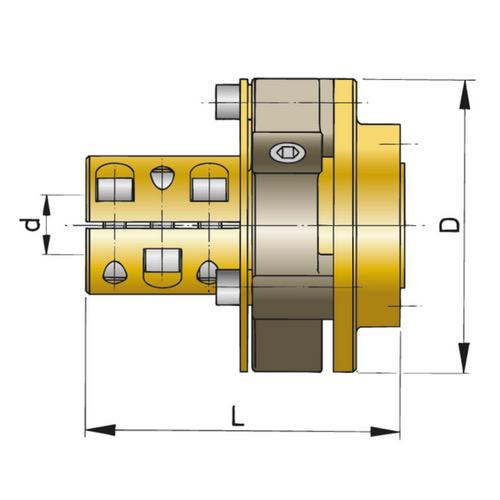

Type	DIN 6270 B Pleasure craft kW (HP) / 100 RPM	DIN 6270 A Commercial craft kW (HP) / 100 RPM	Max Torque (Nm)		Max RPM 0° misalignment	Max RPM 2° misalignment	D (mm)	L (mm)	d (mm) Shaft Dia.
			DIN 6270B	DIN 6270A

BULFL1235	9.8 (12.8)	7.1 (9.6)	900	540	4000	2000	200	177	35
BULFL1240	9.8 (12.8)	7.1 (9.6)	900	540	4000	2000	200	177	40
BULFL1245	9.8 (12.8)	7.1 (9.6)	900	540	4000	2000	200	177	45
