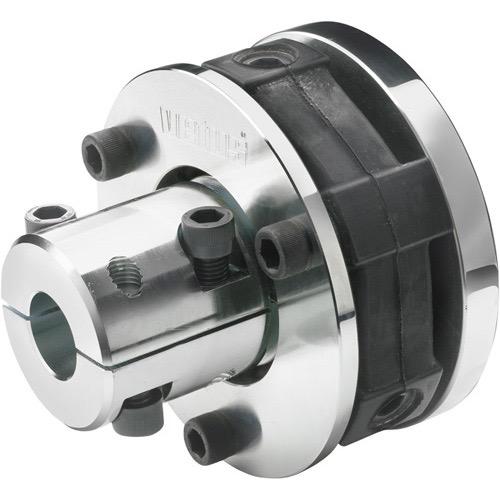

Vetus Bullflex Type 2 Flexible Shaft Coupling

SKU: BULFL0225

$769.95 $807.54

Color

NA

Size

(d)Shaft Dia: 25mm (d)Shaft Dia: 20mm

Description

The Vetus Bullflex Type 2 is a highly flexible shaft coupling designed to deliver optimum vibration damping between the engine and propeller shaft. Its very flexible rubber element smooths out torsional vibrations efficiently, ensuring low-noise, vibration-free power transmission without backlash. The non-tapered clamping hub provides excellent shaft centring for high-RPM applications, and the shaft remains centred even in reverse gear.

Models 1, 2, and 4 feature a 4" gearbox connection. Vetus can also supply the required fastenings for installation. Not suitable for V-Drives.

Very high flexibility with efficient torsional vibration damping
Secured against shearing off — axially and radially — for safe transmission under all conditions
Misalignment of up to 2° permissible
Excellent shaft centring, supporting high shaft revolutions
Shaft remains centred in reverse gear
Centring ring removable when two or more bearings are applied
Built-in thrust damper reduces axial vibrations
Non-tapered clamping hub for easy dismantling

Specifications

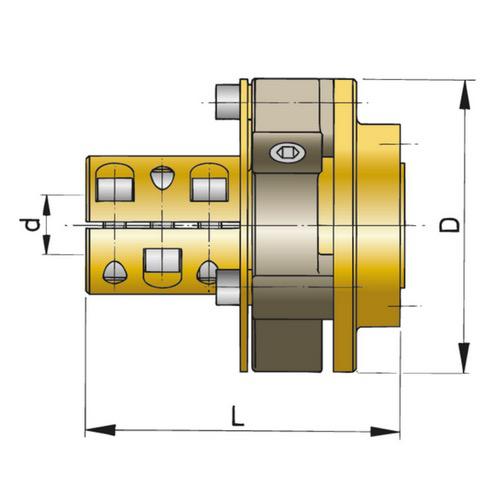

Type	DIN 6270 B Pleasure craft kW (HP) / 100 RPM	DIN 6270 A Commercial craft kW (HP) / 100 RPM	Max Torque (Nm)		Max RPM 0° misalign.	Max RPM 2° misalign.	D (mm)	L (mm)	d (mm)
			DIN 6270B	DIN 6270A

BULFL0220	1.6 (2.1)	0.9 (1.3)	150	90	6500	3250	120	120	20
BULFL0225	1.6 (2.1)	0.9 (1.3)	150	90	6500	3250	120	120	25
