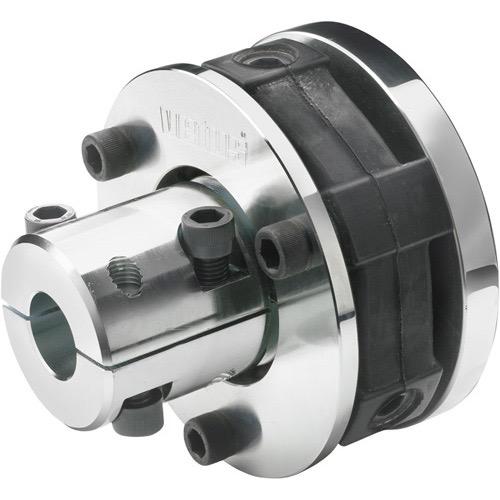

Vetus Flexible Coupling Type Bullflex 8
Description
Type Bullflex is the answer to the increasing demand for greater boating comfort. It is especially designed to ensure optimum damping of vibrations. Torsional vibrations are smoothed out extremely efficiently by its very flexible rubber element, ensuring low-noise and vibration-free transmission without backlash between the engine and propeller shaft. Another strong characteristic is the excellent alignment of the propeller shaft.
Features
- Very high flexibility
- Secured against shearing off (axially and radially) ensuring safe transmission under all circumstances
- Misalignment of up to 2° permissible
- Excellent centring of the shaft, allowing high shaft revolutions
- Shaft remains centred even in reverse gear
- Possibility to remove the centring ring, in case two or more bearings are applied
- Built-in thrust damper reducing axial vibrations
- Non-tapered clamping hub for perfect centring and easy dismantling of the shaft assembly
Specifications
- Models 1, 2 and 4 have a 4" gearbox connection
- Vetus can also supply the required fastenings for installation of the Bullflex onto the gearbox
- This coupling is not suitable for V-Drives

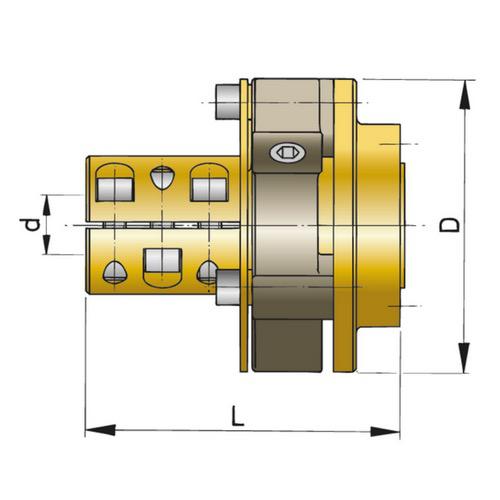

| Type | DIN 6270 B = Pleasure Craft kW (HP) / 100 shaft RPM | DIN 6270 A = Commercial Craft kW (HP) / 100 shaft RPM | Maximum Torque (Nm) | Max RPM at Zero Misalignment | Max RPM at 2° Misalignment | D (mm) | L (mm) | d (mm) | |
|---|---|---|---|---|---|---|---|---|---|
| DIN 6270B | DIN 6270A | ||||||||
| BULFL0830 | 6.3 (8.5) | 4.3 (5.8) | 600 | 410 | 5000 | 2500 | 170 | 166 | 30 |
| BULFL0835 | 6.3 (8.5) | 4.3 (5.8) | 600 | 410 | 5000 | 2500 | 170 | 166 | 35 |
| BULFL0840 | 6.3 (8.5) | 4.3 (5.8) | 600 | 410 | 5000 | 2500 | 170 | 166 | 40 |
