Vetus BOWHMD Hydraulic Bow Thruster — 55–310kgf, Continuous Duty (5 Models)
Description

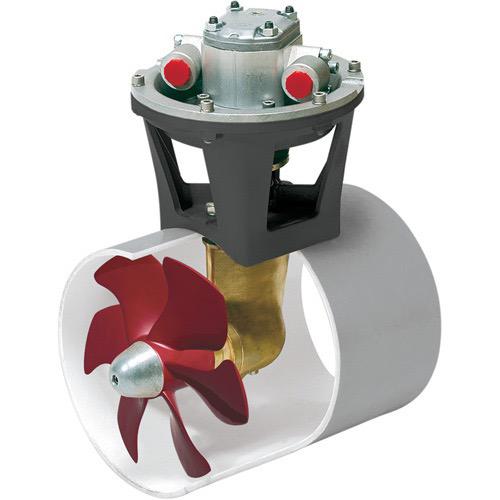

Vetus BOWHMD Hydraulic Bow Thruster
The Vetus BOWHMD series hydraulic bow thrusters are engineered for the most demanding applications, delivering high thrust with continuous-duty capability. Unlike electric thrusters, hydraulic thrusters have no electrical connections at the thruster or pump, require minimal routine maintenance, and can run continuously — though not as primary propulsion units.
Available in 5 stocked thrust ratings from 55kgf to 310kgf (full range extends to 550kgf to special order). Multiple control head options are available, including proportional control, in three control regimens.
Important: Hydraulic thruster installation requires formal training in power hydraulics theory and practice. Vetus customer support will review the entire system with you prior to installation to ensure correct operation. Access to local hydraulic hose and fitting suppliers is essential.
Key Features
- Continuous-duty hydraulic operation
- No electrical connections at thruster or pump
- Low routine maintenance
- Multiple control head options including proportional control
- 5 stocked models: 55kgf to 310kgf thrust
- Tunnel diameters: 150mm to 300mm
- Vetus pre-installation system review included
Specifications
| Specification | BOW55HMD | BOW95HMD | BOW160HMD | BOW230HMD | BOW310HMD |
|---|---|---|---|---|---|
| Thrust N (kgf) | 550 (55) | 950 (95) | 1600 (160) | 2300 (230) | 3100 (310) |
| Hydraulic motor power (kW) | 3.5 | 6.0 | 12.3 | 16.4 | 26.8 |
| Motor speed (RPM) | 3000 | 4100 | 3730 | 2540 | 2760 |
| Motor capacity (cm³/rev) | 4.2 | 4.2 | 8.4 | 16.8 | 27 |
| Flow rate (L/min) | 13 | 18 | 28 | 40 | 70 |
| Operating pressure (bar) | 165 | 230 | 260 | 245 | 230 |
| Tunnel Ø (mm) | 150 | 185 | 250 | 300 | 300 |

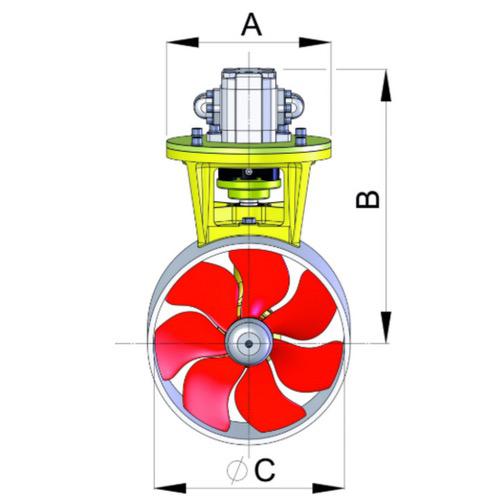

| A Ø (mm) | 160 | 200 | 240 | 258 | 258 |
| B (mm) | 258 | 276 | 345 | 431 | 455 |
| C Ø (mm) | 150 | 185 | 250 | 300 | 300 |
