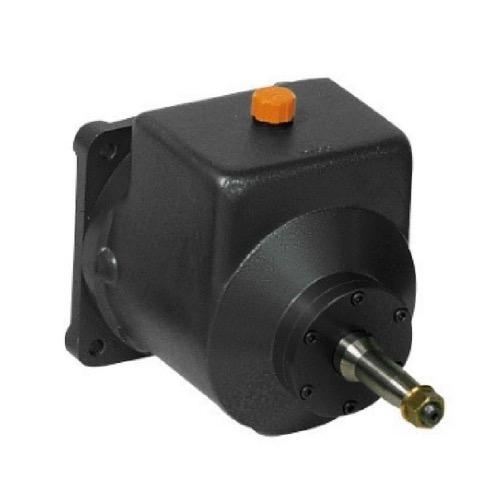

Vetus Hydraulic Steering Helm Pump Unit (MTP151B / MTP191B)

SKU: MTP191B

$5,899.00 $6,292.83

Color

NA

Size

Capacity of Pump Unit: 191 cm3/rev. Capacity of Pump Unit: 151 cm3/rev.

Description

The Vetus MTP series is a heavy-duty axial plunger helm pump unit for hydraulic steering systems, designed for use with the Vetus MT cylinder series (MT0230B through MT1200B). With 7 plungers and a maximum pressure of 63 kg/cm² (896 psi), it is suited to large vessels requiring high-output steering. Available in 151 cm³/rev and 191 cm³/rev capacities. Cylinder and pump can be supplied separately.

Key Features

Axial plunger design with 7 plungers — high-output, smooth steering
Compatible with Vetus MT cylinder series: MT0230B, MT0345B, MT0455B, MT0600B, MT0900B, MT1200B
25mm / 1" AISI 316 stainless steel steering wheel shaft — extra strong for large wheels
Cylinders supplied with flexible hose tails, bleed nipples (quick-release coupling compatible) and base plate with universal joint and swivelling rod end
Available for single and dual station control
Cylinder and pump can be ordered separately

Specifications

Specification	MTP151B	MTP191B
Pump capacity	151 cm³/rev	191 cm³/rev
Number of pistons	7
Maximum pressure	63 kg/cm² (6,178 kPa / 896 psi)
Tube dimensions	Ø 18 × 15mm
Connections	G ½" female BSP
Weight of pump unit	23 kg	23 kg
Min. steering wheel diameter	110 cm	135 cm
