Vetus Rectangular Air Suction Vent — ASVREC Series

SKU: ASVREC20

$155.95 $158.81

Color

NA

Size

Length: 300mm - Cut-out: 280mm Length: 450mm - Cut-out: 430mm Length: 570mm - Cut-out: 550mm Length: 660mm - Cut-out: 640mm Length: 490mm - Cut-out: 470mm Length: 360mm - Cut-out: 340mm Length: 590mm - Cut-out: 570mm

Description

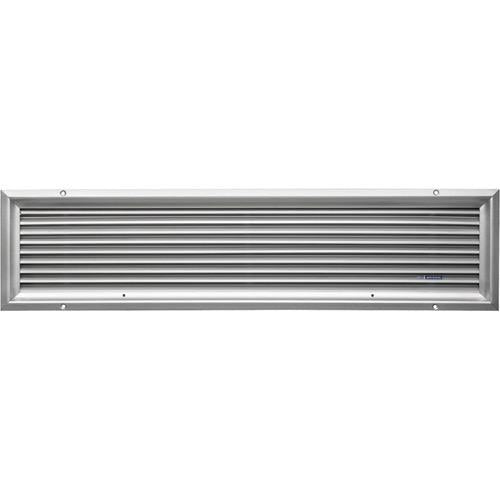

Vetus Rectangular Air Suction Vent — ASVREC Series

Engineered for reliable engine bay ventilation aboard marine vessels, the Vetus ASVREC rectangular air suction vent ensures your engine receives both the combustion air and ventilation air it needs to run safely and efficiently.

Engines require approximately 6.1 m³ per kW (4.5 m³ per hp) per hour of ventilation air at a maximum air velocity of 3 m/sec. The ASVREC series is designed around these principles, with model numbers corresponding to the engine horsepower rating they are suited for.

Key Features

Polished anodised aluminium frame for a premium finish
Naturally anodised aluminium grille for corrosion resistance
Sized to match engine horsepower requirements
Multiple sizes available to suit a range of engine compartment cut-outs

Specifications

Model	A (mm)	B = Cut-out (mm)	C (mm)	D = Cut-out (mm)	Free Flow Area (dm²)
ASVREC20	300	280	117	97	0.83
ASVREC30	360	340	130	110	1.25
ASVREC40	450	430	130	110	1.62
ASVREC50	490	470	146	126	2.05
ASVREC60	570	550	146	126	2.45
ASVREC70	590	570	159	139	2.85
ASVREC80	660	640	159	139	3.25

* 1 dm² = 100 cm²
