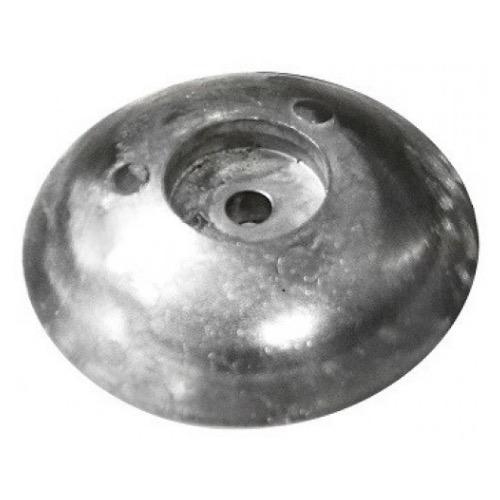

Vetus Rudder Anode Model "Disc"

SKU: RAD50Z

$7.95 $8.95

Color

NA

Size

Description

Sacrificial anode protection is essential for all metal parts below the waterline. Vetus rudder anodes are available in zinc and aluminium alloy, suitable for wooden, fibreglass, aluminium, and steel hulls.

Vetus zinc anodes meet U.S. Mil-A-18001K specifications — the highest possible standard. Anodes that do not meet this specification offer little or no protection. Vetus aluminium anodes are manufactured from an aluminium-indium-zinc alloy to Mil-A-24779(SH) specification.

All anodes are streamlined and mount via studs (for welding to steel hulls) or through-hull bolts (for fibreglass and wooden boats). Studs and bolts are supplied separately.

Choosing the Right Anode Material

For vessels primarily used in fresh water, aluminium anodes are recommended — aluminium has a greater electrochemical potential difference with other metals, which is important given freshwater's higher electrical resistance. For salt or brackish water, zinc anodes are suitable; aluminium also works in saltwater but is consumed more rapidly. Magnesium anodes are not recommended, as the excessive potential difference can damage hull paint, particularly in brackish or salt water.

Recommended Anode Material by Hull Type & Water Type
Water Type	Wood	GRP	Aluminium	Steel	Sterndrive / Outboard
Fresh	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium
Brackish	Zinc / Aluminium	Zinc / Aluminium	Zinc / Aluminium	Zinc / Aluminium	Aluminium
Salt	Zinc / Aluminium	Zinc / Aluminium	Zinc / Aluminium	Zinc / Aluminium	Aluminium
Inspect anodes annually. Replace when 50% consumed.

Specifications

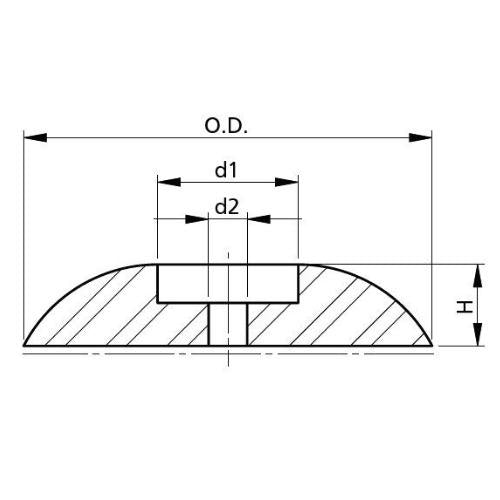

Disc Rudder Anode Dimensions
Part No.	Description	O.D. (mm)	d1 (mm)	d2 (mm)	H (mm)
RAD50Z	Zinc Rudder Anode – Disc	50	20	6.5	11
RAD70Z	Zinc Rudder Anode – Disc	70	22	8.5	13
RAD90Z	Zinc Rudder Anode – Disc	90	31	8.5	18
RAD110Z	Zinc Rudder Anode – Disc	110	30	11	18
RAD140Z	Zinc Rudder Anode – Disc	140	35	12	30
