Vetus Series/Parallel Switch – 24V Thruster with 12V Charging System (BPSPE)

SKU: BPSPE

$1,659.00 $1,899.00

Description

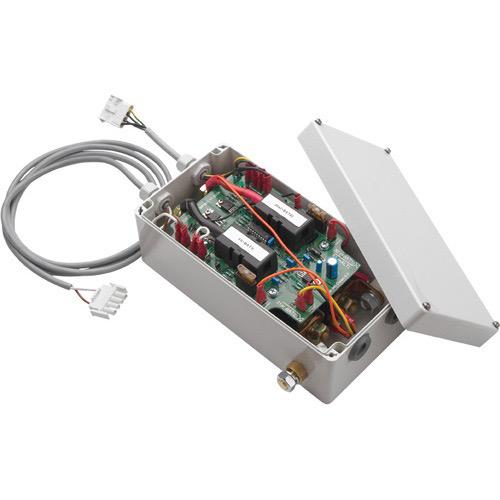

The Vetus BPSPE is a series/parallel switch that allows 160 kgf and 220 kgf bow thrusters (24V DC only) to be powered from a 12V battery bank. By connecting two 12V batteries in series, the switch delivers the required 24V to the thruster. When charging, the batteries are automatically switched to parallel and connected to the 12V charging system — no manual intervention required.

Supplied with pre-assembled auxiliary relays for straightforward connection between the battery bank and the bow thruster. Meets EMC requirements.

Note: Thruster model BOW28548D is supplied as standard with a series/parallel switch for 24V battery bank connection. The 24–48V version can also be ordered separately as code BP3008.

Key Features

Enables 24V thruster operation from a 12V battery bank
Auto-switches batteries to parallel for 12V charging
Pre-assembled auxiliary relays — simple installation
Charging contacts: 100A continuous / 150A intermittent at 20% duty
EMC compliant
Suits Vetus bow thrusters 160 kgf and 220 kgf (24V)

Specifications

Part Number	BPSPE
Thruster voltage	24V DC
Battery bank	2 × 12V in series
Charging system	12V (batteries auto-switched to parallel)
Charging contacts (continuous)	100A
Charging contacts (intermittent)	150A at 20% duty
EMC compliant	Yes
24–48V variant	BP3008 (order separately)
