Vetus HTP Hydraulic Steering Pump — 10mm Tubing, Without Non-Return Valve (6 Models)

SKU: HTP4210

$1,149.00 $1,206.01

Color

White Black

Size

Capacity (cm3/rev): 42,0 Capacity (cm3/rev): 30,0 Capacity (cm3/rev): 19,7

Description

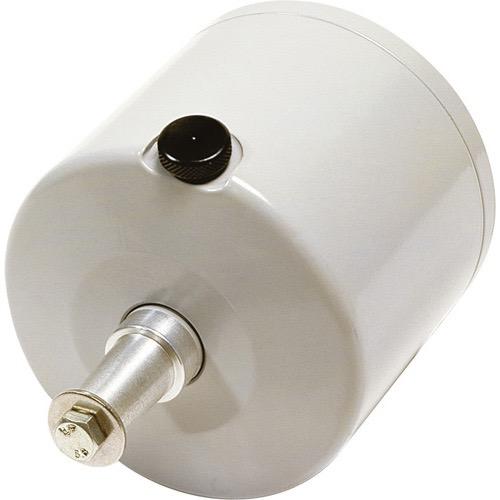

Vetus HTP Hydraulic Steering Pump — Without Non-Return Valve

A hydraulic helm pump for marine steering systems, compatible with virtually all steering wheels including Vetus wheels. Fitted with a Ø3/4" shaft with 1:12 taper. Available in White and Black, in three capacities: 19.7, 30.0, and 42.0 cm³/rev. All models use 10mm tubing.

Each pump is supplied with compression fittings for pressure lines, a balance pipeline port, mounting studs/nuts/washers, and one vented and one un-vented filler plug. Non-return valve not included — order separately if required.

Key Features

Compatible with most steering wheels including Vetus series

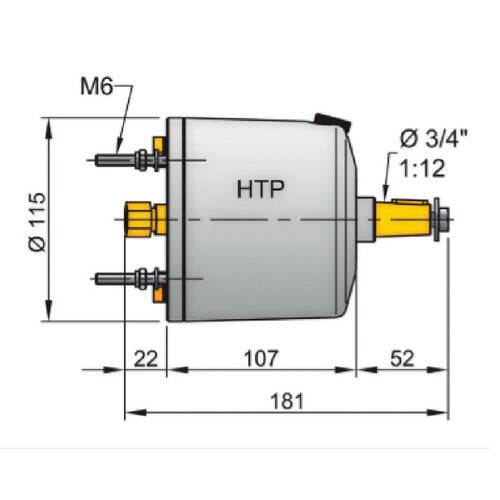

Shaft: Ø3/4", 1:12 taper
Tubing diameter: 10mm
3 capacities: 19.7, 30.0, and 42.0 cm³/rev
5-piston (19.7 & 30.0 cm³/rev) or 7-piston (42.0 cm³/rev)
Available in White and Black
Supplied with compression fittings, balance port, mounting hardware, and filler plugs
Non-return valve not included

Specifications

SKU	Colour	Tubing Ø	Capacity (cm³/rev)	Pistons	Weight excl. valve (kg)
HTP2010	White	10mm	19.7	5	3.3
HTP3010	White	10mm	30.0	5	3.3
HTP4210	White	10mm	42.0	7	3.3
HTP2010B	Black	10mm	19.7	5	3.3
HTP3010B	Black	10mm	30.0	5	3.3
HTP4210B	Black	10mm	42.0	7	3.3
