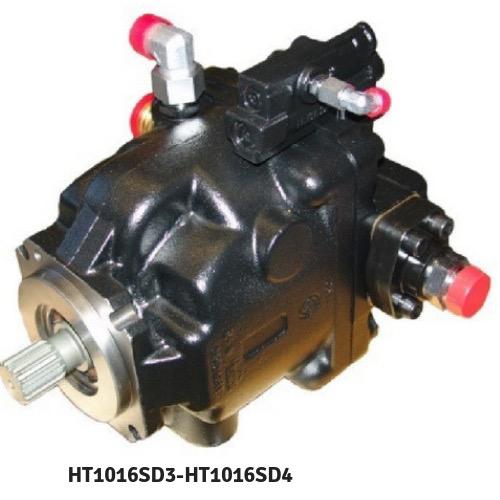

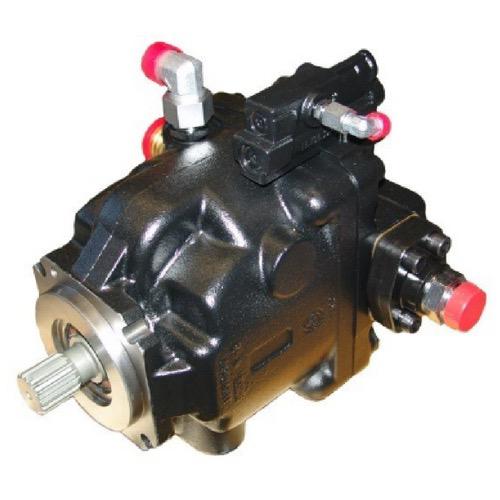

Vetus Variable Displacement Piston Pump – 130cc, Clockwise, SAE-C Flange, Cast Iron (HT1016SD4)

SKU: HT1016SD4

$9,899.00 $12,119.80

Description

The Vetus HT1016SD4 is a hydraulic load-sensing variable displacement piston pump for mounting on a main or auxiliary engine PTO. The cast-iron housing delivers low noise operation. With 130cc displacement and clockwise rotation (viewed from the shaft end), it uses an SAE-C flange with a 17-spline drive shaft and side-mounted pressure/suction connections. The 100cc clockwise variant is HT1016SD3.

Note: It may be necessary to reduce pump pressure to avoid exceeding the maximum allowable torque for the PTO, even if this means reduced power to the user device. Non-standard pumps are made to order.

Key Features

Variable displacement load-sensing piston pump
130cc displacement
Cast-iron housing — low noise operation
Clockwise rotation (viewed from shaft end)
SAE-C flange, 17-spline shaft
Side connection for suction and pressure ports
Suits main or auxiliary engine mounting
100cc clockwise variant: HT1016SD3

Specifications

Specification	HT1016SD3	HT1016SD4
Capacity	100 cc	130 cc
Rotation	Clockwise (RH)	Clockwise (RH)
Flange	SAE-C	SAE-C
Shaft	17-spline	17-spline
Housing	Cast iron	Cast iron
Port connections	Side	Side
