Vetus Variable Displacement Hydraulic Piston Pump – 45cc, Clockwise, SAE-B Flange (HT1017SD2)

SKU: HT1017SD2

$5,299.00 $6,006.96

Description

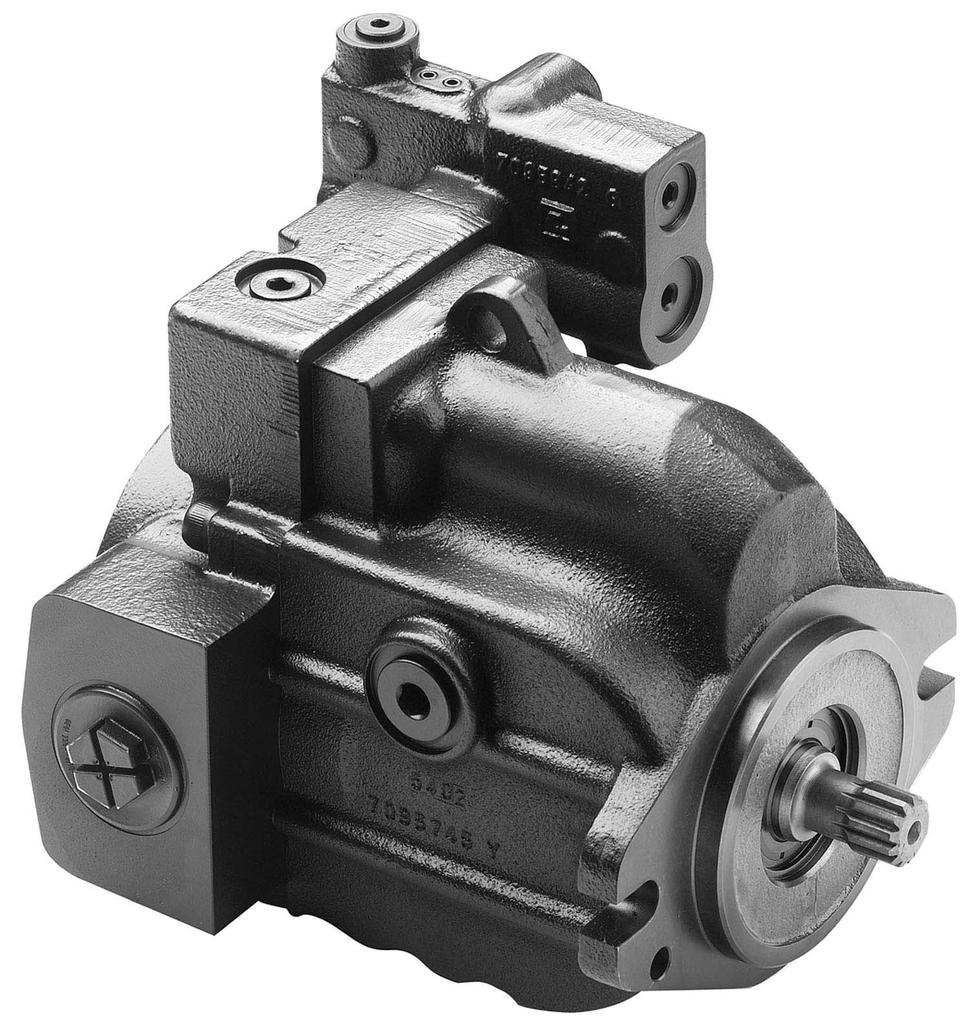

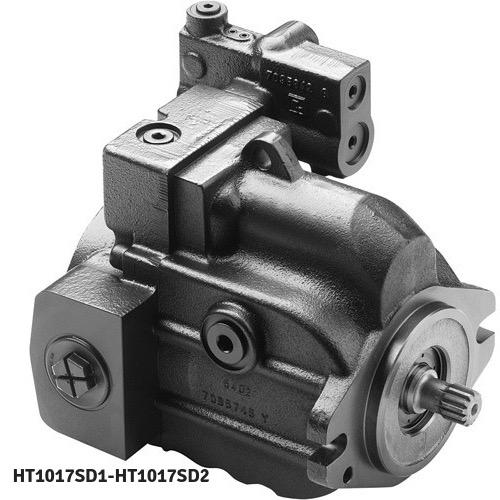

The Vetus HT1017SD2 is a hydraulic load-sensing variable displacement piston pump for mounting on a main or auxiliary engine. The SD2 variant offers 45cc displacement with clockwise rotation (viewed from shaft end), SAE-B flange mounting with 13-spline shaft, and side connections for suction and pressure. Compatible with Twin Disc gearboxes. Non-standard configurations are made to order.

Load-sensing variable displacement design
Engine-mounted: main or auxiliary
Displacement: 45cc (SD2) — 30cc version also available (SD1)
Rotation: clockwise viewed from shaft end
Connection: SAE-B flange, 13-spline shaft
Side connection for suction and pressure ports
Compatible with Twin Disc gearboxes
Max RPM: 2,800 (SD2)
Approx. weight: 27kg (SD2)
Torque per bar of operating pressure: 0.72 Nm/bar (SD2)
Non-standard pumps made to order

Note: It may be necessary to reduce pump pressure to avoid exceeding the maximum allowed torque for the PTO, even if that means reduced power for the user device.
