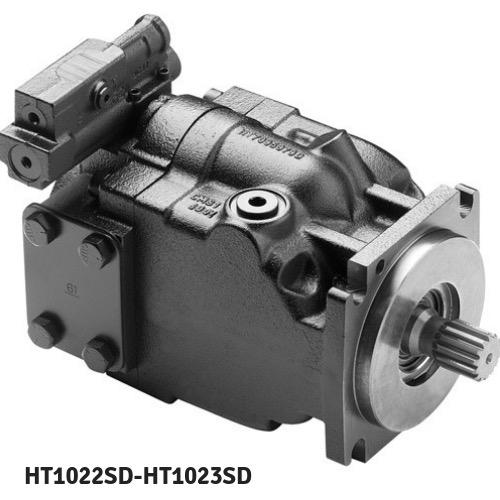

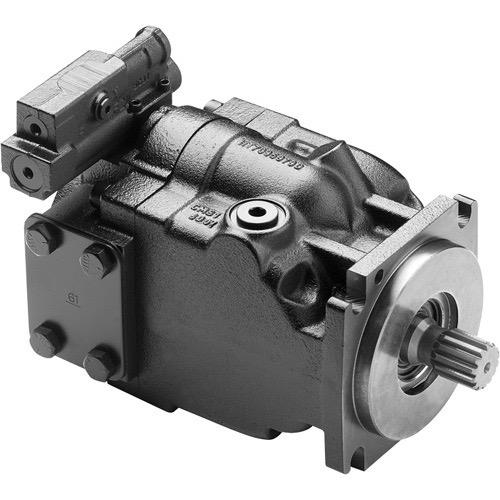

Vetus Variable Displacement Piston Pump – 75cc, Anti-Clockwise, SAE-C Flange (HT1022SD)

SKU: HT1022SD

$8,199.00 $9,425.76

Description

The Vetus HT1022SD is a hydraulic load-sensing variable displacement piston pump for mounting on a main or auxiliary engine PTO. With a 75cc displacement and anti-clockwise rotation (viewed from the shaft end), it suits SAE-C flange mounting with a 14-spline shaft and is compatible with Twindisc gearboxes. The clockwise rotation variant is HT1023SD.

Note: It may be necessary to reduce pump pressure to avoid exceeding the maximum allowable torque for the PTO, even if this means reduced power to the user device. Non-standard pumps are made to order.

Key Features

Variable displacement load-sensing piston pump
75cc displacement
Anti-clockwise rotation (viewed from shaft end) — clockwise version: HT1023SD
SAE-C flange, 14-spline shaft
Side connection for suction and pressure ports
Compatible with Twindisc gearboxes
Suits main or auxiliary engine mounting

Specifications

Part Number	HT1022SD
Capacity	75 cc
Rotation	Anti-clockwise (viewed from shaft end)
Flange	SAE-C
Shaft	14-spline
Max RPM	2,880 rpm
Torque per bar of operating pressure	1.2 Nm/bar
Weight (approx)	27 kg
Clockwise variant	HT1023SD
