Vetus Waterlock Muffler NLP50S 50mm "Super"

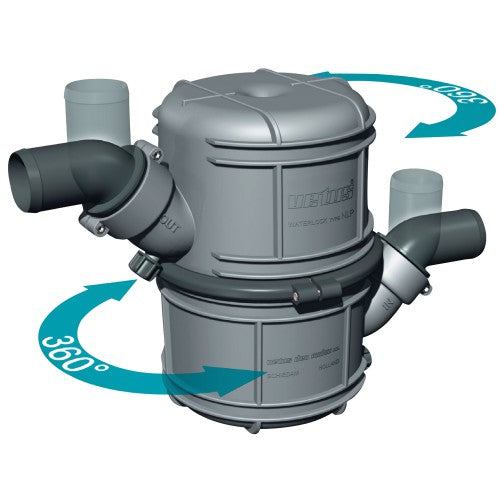

he NLP Waterlocks are of dual stage construction, featuring upper and lower chambers with a horizontal partition plate and a riser tube through the centre. Compared with single stage Waterlocks using only one chamber, these NLP Waterlocks offer superior silencing of exhaust noise with minimal back pressure. Since the top chamber may be rotated through 360Â° and both the inlet and the outlet connectors can rotate through 360Â°, installation of the exhaust assembly even in confined engine spaces is greatly simplified.
The rotatable inlet of the Waterlock is connected to the engine exhaust manifold, using VETUS exhaust hose. The exhaust gases, mixed with cooling water are forced from the lower chamber into the upper one, via the central riser tube and then through the (also rotatable) outlet connector at the top. This outlet connector is coupled to the transom connector, again by means of VETUS exhaust hose. For optimum silencing of exhaust noise, we recommend installation of a VETUS muffler and gooseneck (DEMPMP50 & WLOCKLT50) in the exhaust line, after the NLP Waterlock.Â
Provided with drain plugs (for winter storage). Straps to secure the Waterlock to the boat are supplied as standard.
Capacity: 10 Litres.
External Diameter; 50mm
